70mm Cryogen-Free Top-Loading

System: ^DRY ICE ^1.5K

Customer: Triumf

Type: DRY

Temperature Range: 1.4K - 300K

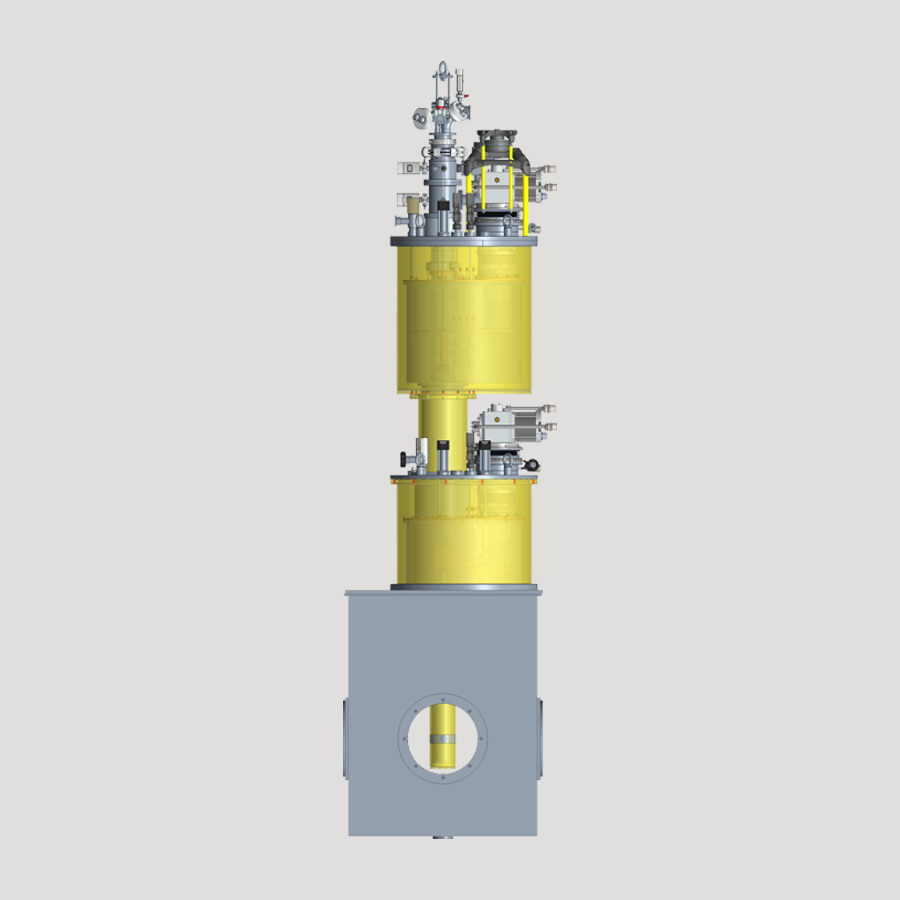

The TRIUMF M9H Muon Beamline system utilises an elongated 1.5K VTI with a pair of <20mK dilution inserts to allow for rapid sample exchange.

This cryogenic insert was designed to integrate with a high specification, large-bore / split superconducting magnet held within its own separate cryostat. The custom magnet is held within its own separate cryostat. The custom magnet allows access from 3 axes into a 4T magnet, along with modulation coils for field sweeping. The field stability and decay are important specifications for these systems
