ICE Launches Brand New Split Cryostat

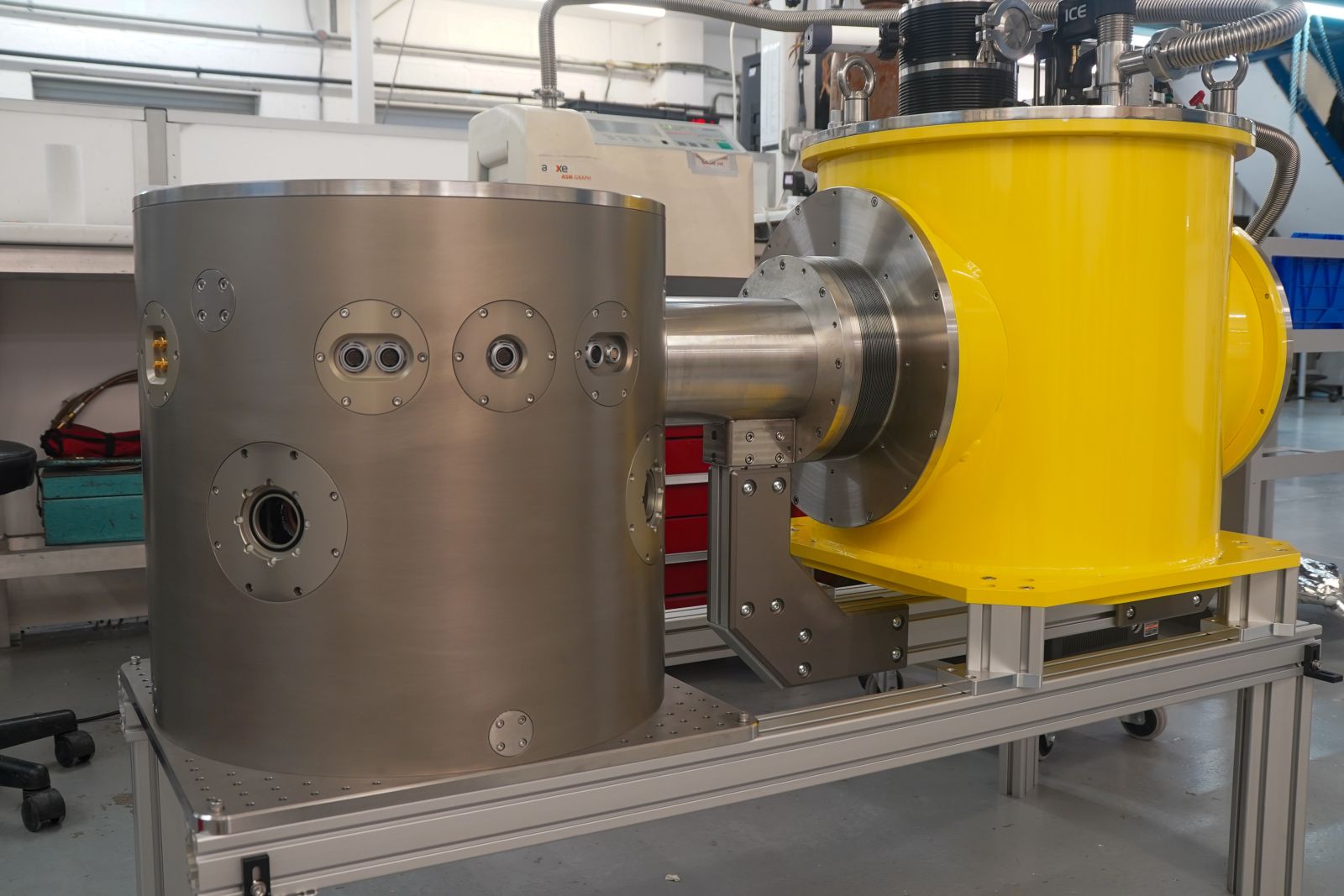

The DRY ICE DYAD is a closed-cycle system capable of cooling to 1.4K whilst providing excellent optical access and ultra-low vibration. The sample unit is held separately from the cold head and the main body of the cryostat on an optical table. The two are connected only by a soft thermal link to reduce vibration to a minimum. The sample space environment can be switched between a top-loading exchange gas module and a vacuum module within a couple of hours, making it a flexible solution for multiple applications in busy labs.

This cutting-edge system is pushing the boundaries of Quantum Optics with its unparalleled specs:
5T Split Pair Magnet
Optical Access: 5 windows with short working distance
Base Temperature: 1.3K

Cooling Powers:
50mW @ 1.5K
100mW @ 1.6K
200mW @ 1.9K
Vibrations: <20nm

We also have systems on test with advanced options such as:
- 3 Axis Vector Rotate Magnet
- Cold Objectives
- 3 Axis Onnes Technologies Nanopositioners
